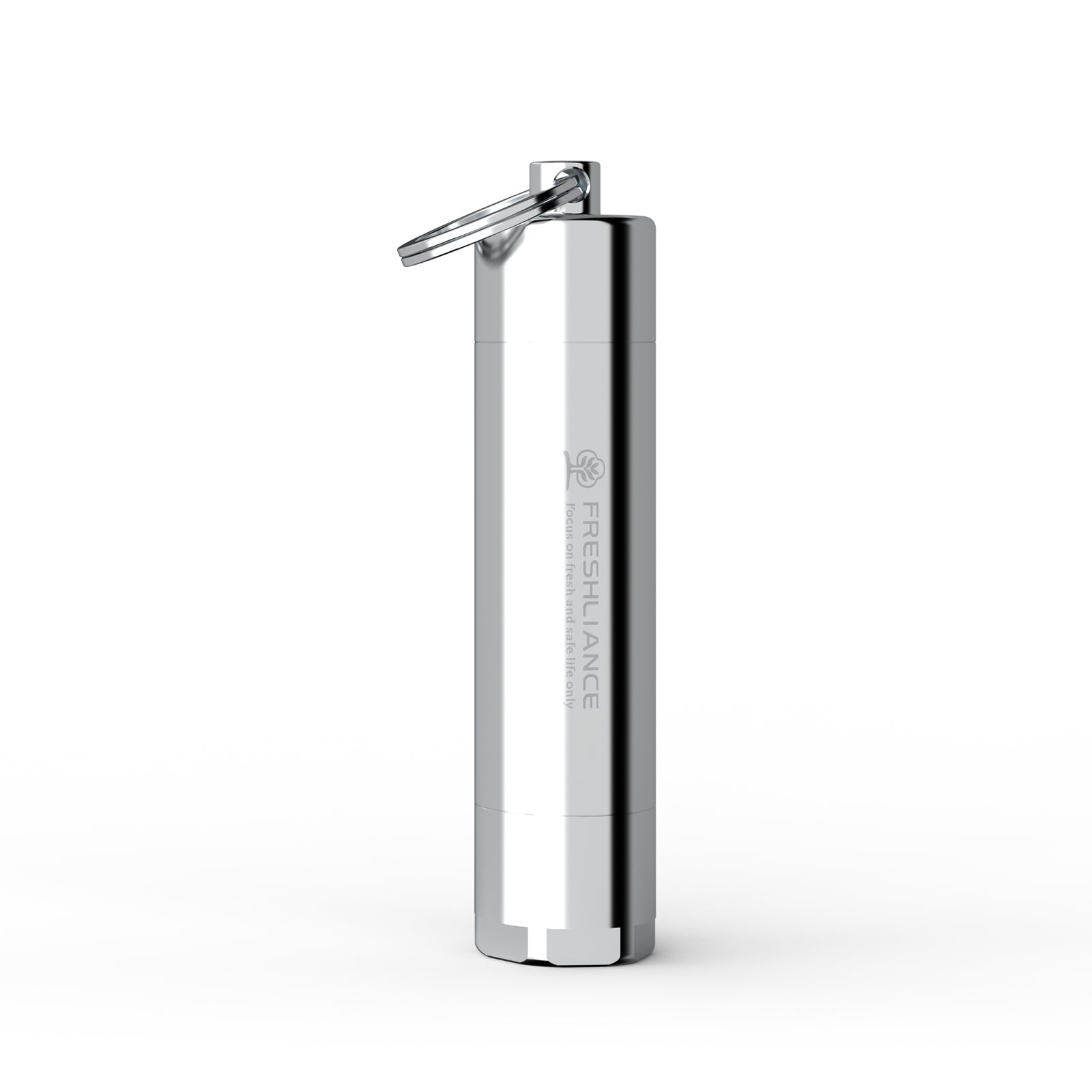

Iron Tag 100 Rugged Temperature Data Logger

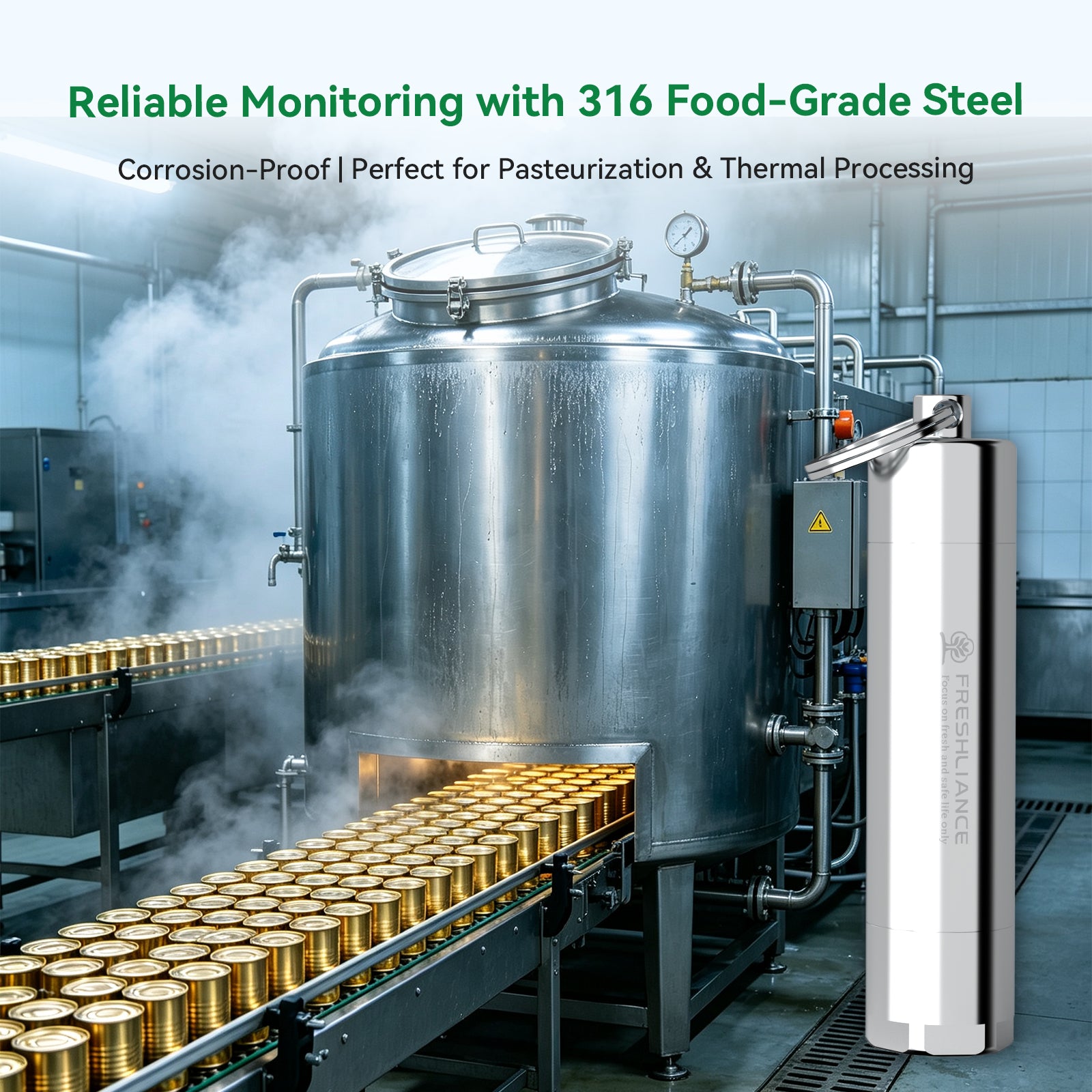

The Iron Tag 100 is a multi-use high-temperature data logger engineered for precise thermal tracking in demanding industrial processes. Featuring an IP68 protection rating, this device supports full liquid immersion and delivers reliable monitoring for high-temperature sterilization, autoclaving, food processing, and pasteurization environments.



Specification

Model	Iron Tag 100
Type of Use	Multi use
Temperature Range	-90°C~+60°C / -40°C~+125°C / -40°C~+140°C / -50°C~+150°C ±0.3°C (-40°C~+100°C); ±0.5°C (Others)
Logging Interval	1min~24h
Start Delay	0min~24h
Memory Capacity	PDF: 35,000 readings / CSV: 20,000 readings PDF&CSV: 20,000 readings each
Alarms	Two alarm points (High and low alarm)
Battery	3.6V lithium battery, replaceable
Battery Life	Max. 3 years (-90°C~+70°C) Max. 2.2 years (-50°C~+150°C)
Connection	USB Type-C
Operating System	Windows All
Display	LED
IP Rating	IP68
Dimensions	φ22mm*100.3mm
Weight	Approx. 148g (Battery excluded) Approx. 162g (Battery included)
Standards	CE, FCC, EN12830, GMP, IATA, RoHS, HACCP, RTCA/DO-160G

Returns
Our policy lasts 30 days. If 30 days have gone by since your purchase, unfortunately we can’t offer you a refund or exchange.

To be eligible for a return, your item must be unused and in the same condition that you received it. It must also be in the original packaging.

Several types of goods are exempt from being returned. Perishable goods such as food, flowers, newspapers or magazines cannot be returned. We also do not accept products that are intimate or sanitary goods, hazardous materials, or flammable liquids or gases.

Additional non-returnable items:
- Gift cards
- Downloadable software products
- Some health and personal care items

To complete your return, we require a receipt or proof of purchase.
Please do not send your purchase back to the manufacturer.

There are certain situations where only partial refunds are granted (if applicable)
- Book with obvious signs of use
- CD, DVD, VHS tape, software, video game, cassette tape, or vinyl record that has been opened
- Any item not in its original condition, is damaged or missing parts for reasons not due to our error
- Any item that is returned more than 30 days after delivery

Refunds (if applicable)
Once your return is received and inspected, we will send you an email to notify you that we have received your returned item. We will also notify you of the approval or rejection of your refund.
If you are approved, then your refund will be processed, and a credit will automatically be applied to your credit card or original method of payment, within a certain amount of days.

Late or missing refunds (if applicable)
If you haven’t received a refund yet, first check your bank account again.
Then contact your credit card company, it may take some time before your refund is officially posted.
Next contact your bank. There is often some processing time before a refund is posted.
If you’ve done all of this and you still have not received your refund yet, please contact us at shop@freshliance.com.

Sale items (if applicable)
Only regular priced items may be refunded, unfortunately sale items cannot be refunded.

Exchanges (if applicable)
We only replace items if they are defective or damaged. If you need to exchange it for the same item, send us an email at shop@freshliance.com and send your item to: Freshliance Electronics Corp., Ltd, Building 7, Hengfengkechuang center Zhengzhou, 451162 Henan, China.

Gifts
If the item was marked as a gift when purchased and shipped directly to you, you’ll receive a gift credit for the value of your return. Once the returned item is received, a gift certificate will be mailed to you.

If the item wasn’t marked as a gift when purchased, or the gift giver had the order shipped to themselves to give to you later, we will send a refund to the gift giver and he will find out about your return.

Shipping
To return your product, you should mail your product to: Freshliance Electronics Corp., Ltd, Building 7, Hengfengkechuang center Zhengzhou, 451162 Henan, China

You will be responsible for paying for your own shipping costs for returning your item. Shipping costs are non-refundable. If you receive a refund, the cost of return shipping will be deducted from your refund.

Depending on where you live, the time it may take for your exchanged product to reach you, may vary.

If you are shipping an item over $75, you should consider using a trackable shipping service or purchasing shipping insurance. We don’t guarantee that we will receive your returned item.

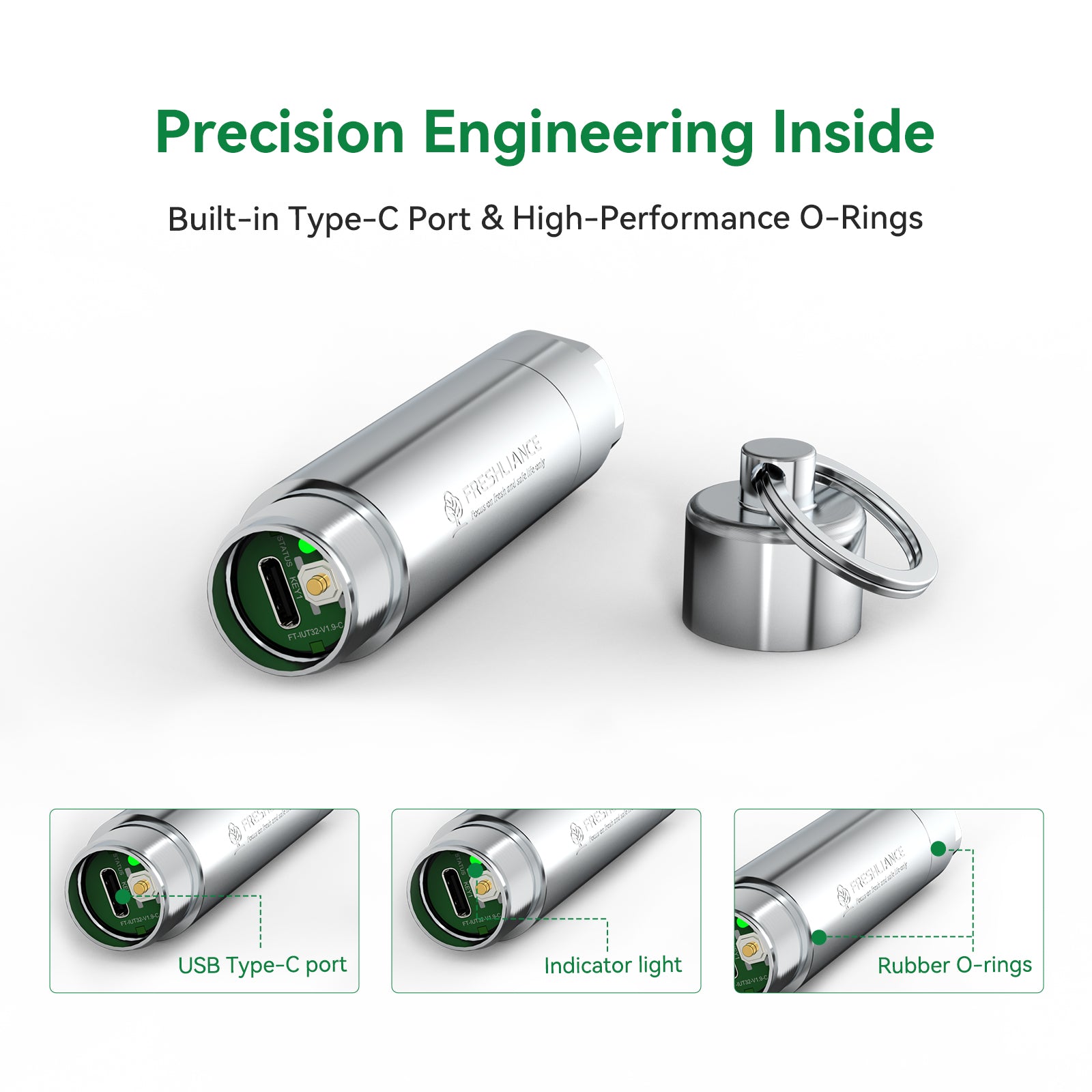

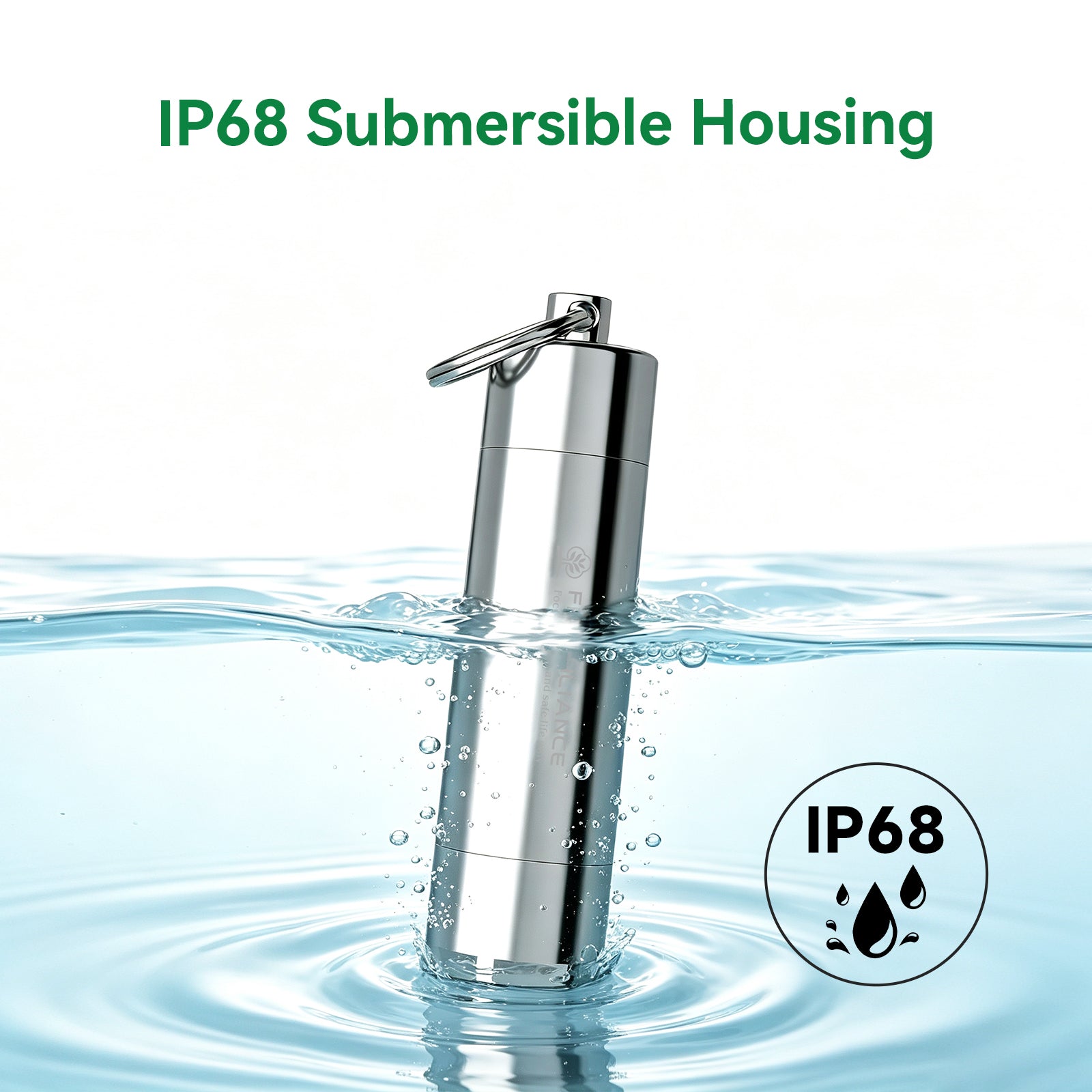

• Rugged stainless steel housing with IP68 immersion protection
  Constructed with premium 316 stainless steel and tightly sealed with high-performance rubber O-rings. The rugged housing offers exceptional corrosion resistance and impact protection, allowing the device to be directly immersed in water, silicone oil, or ethyl alcohol within high-temperature and high-pressure industrial environments.

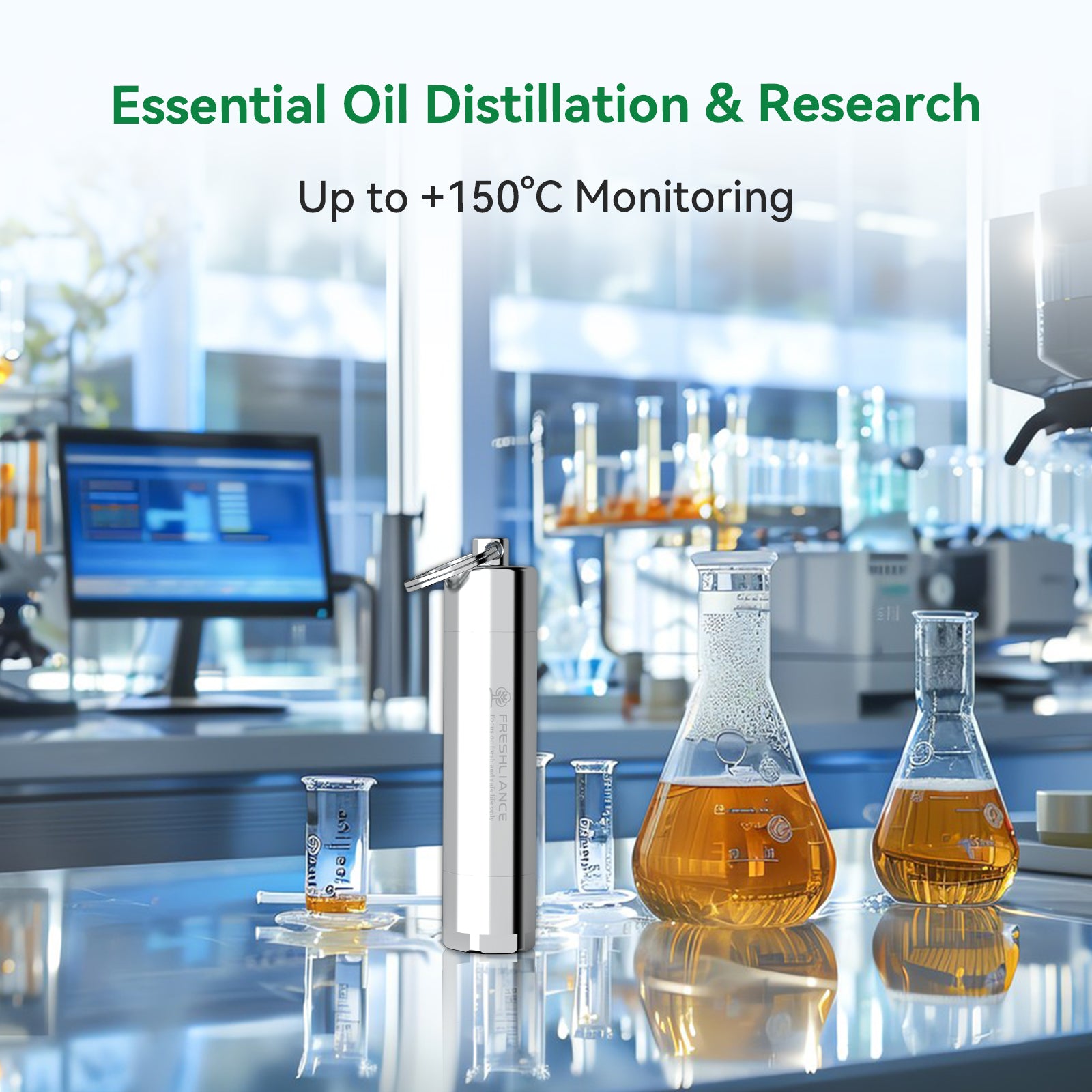

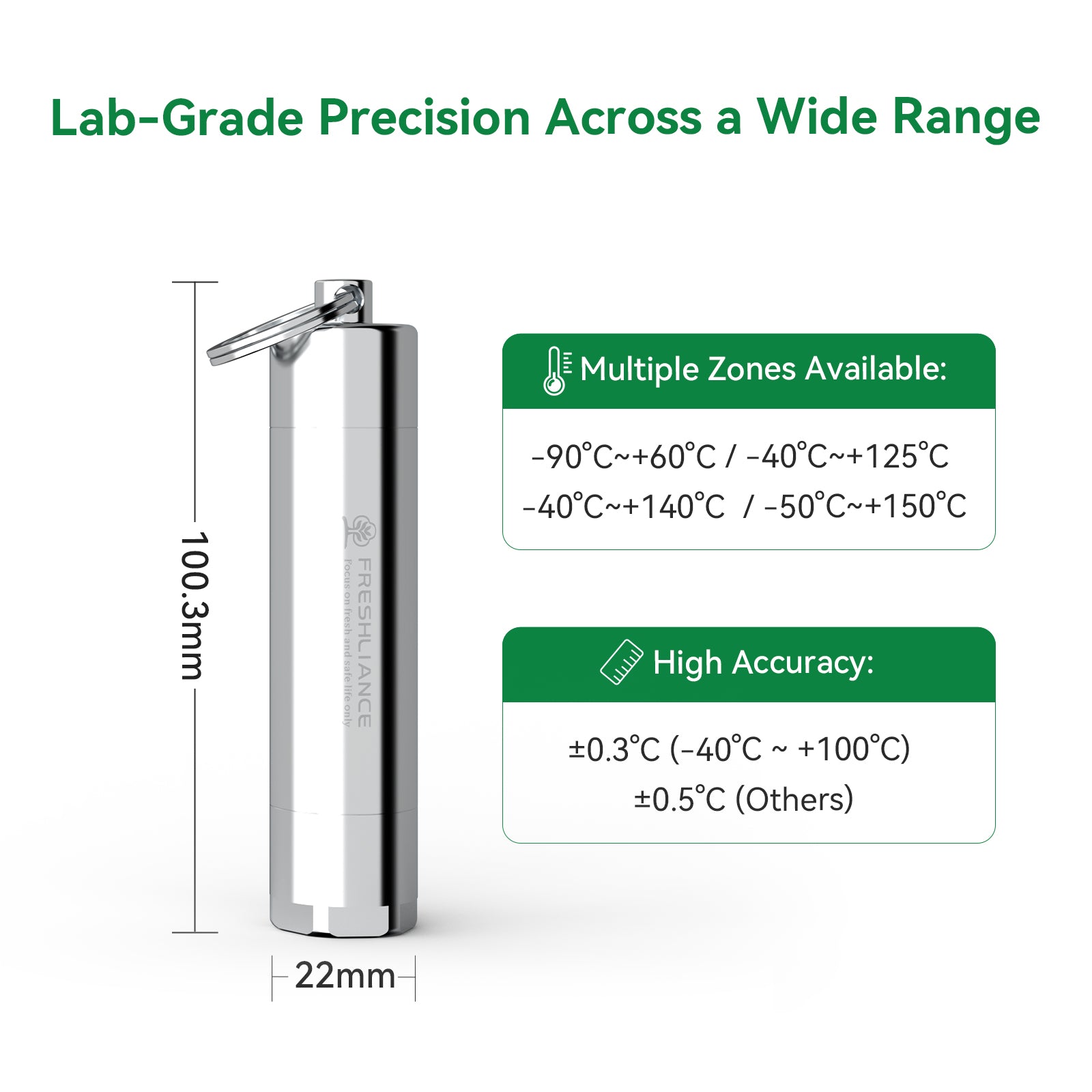

• High-accuracy sensing across wide temperature ranges

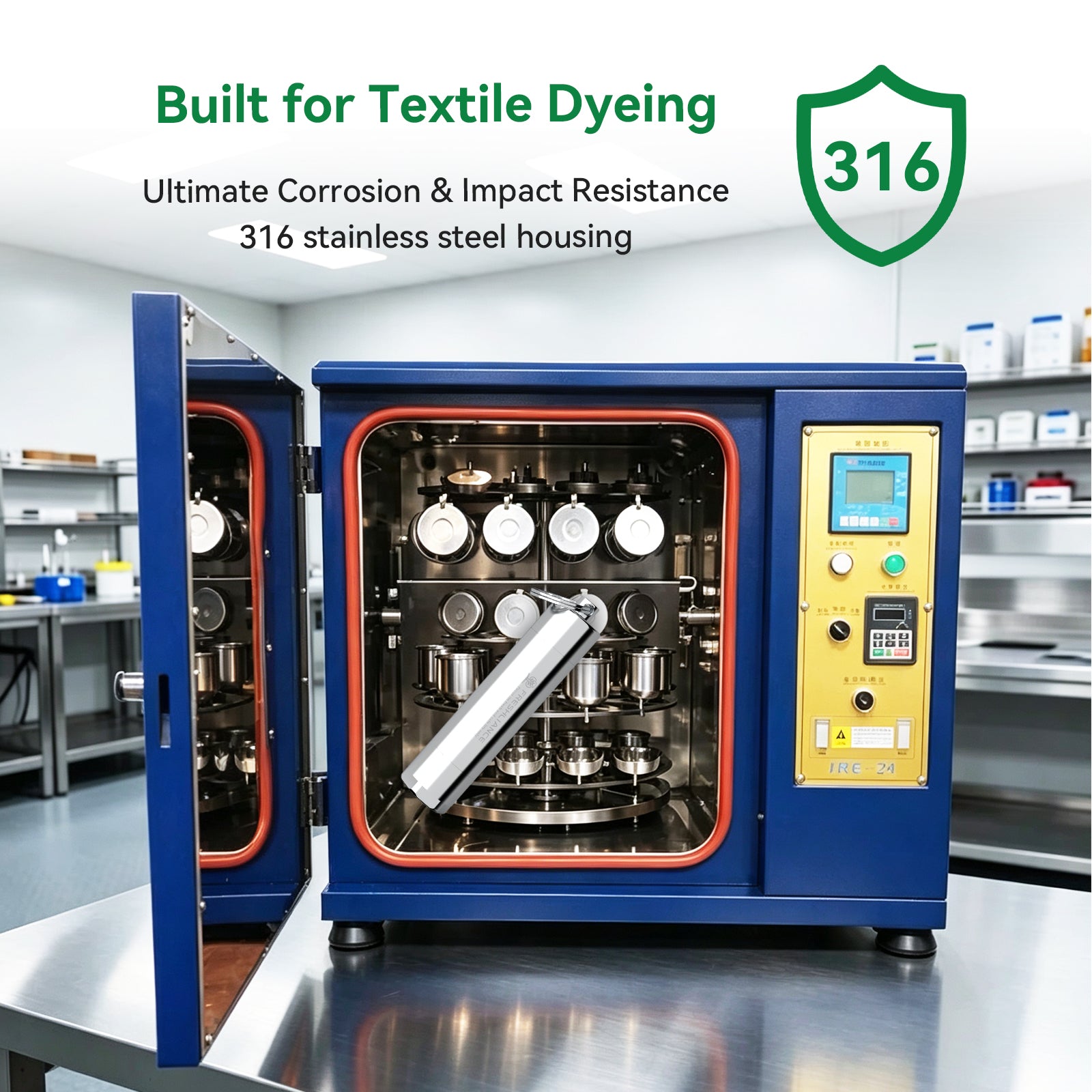

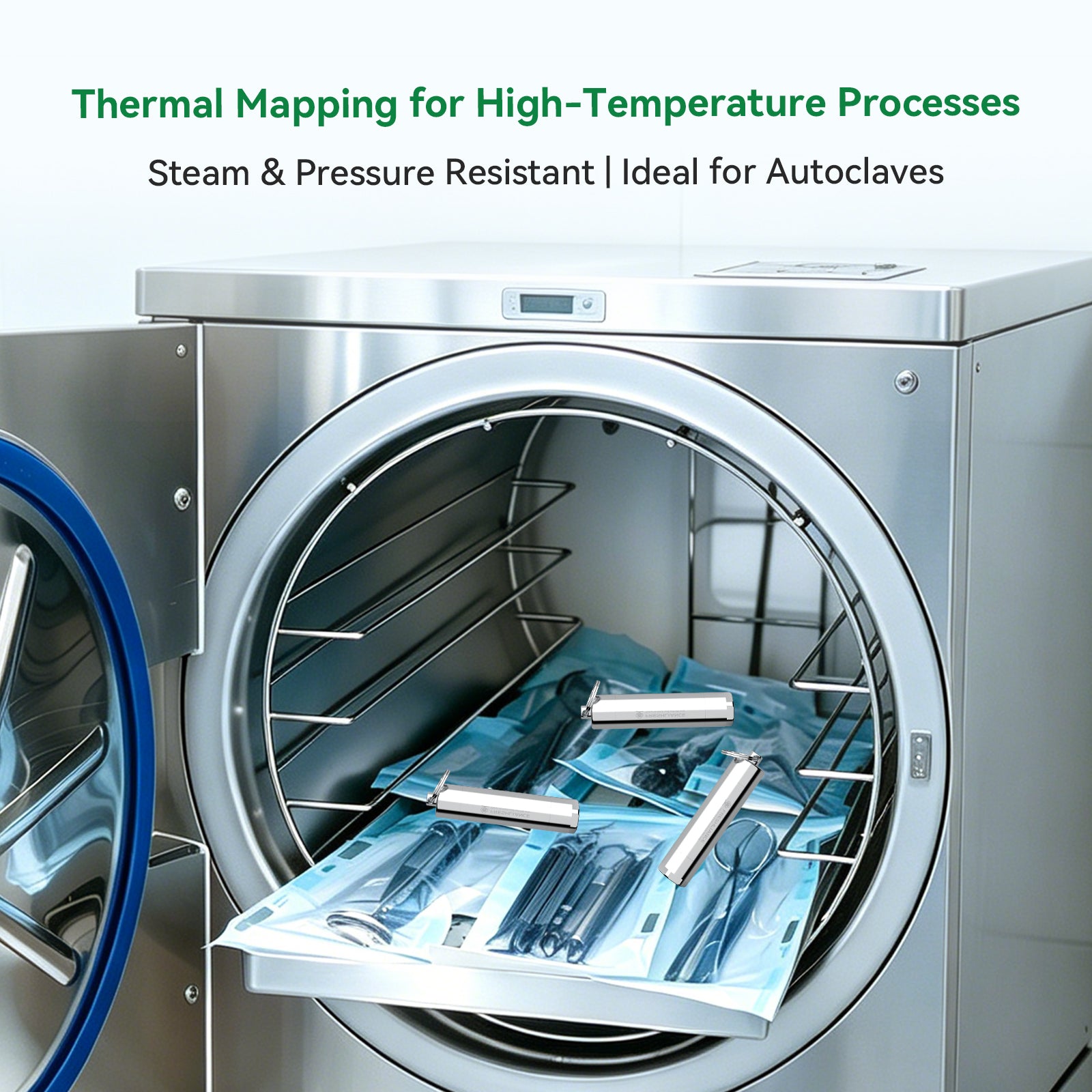

  Measures temperature with high precision of up to ±0.3°C within a monitoring range of -40°C to +100°C, and can operate across a broader range from -90°C to +150°C. The maintenance-free design ensures robust data logging in specialized sterilization, autoclaving, dyeing, and pasteurization processes, reducing operational downtime and eliminating the need for frequent recalibration.

• Long-term operation with extended runtime expectancy
  Designed to support continuous data collection without frequent battery replacements. This temperature data logger can operate reliably for up to 3 years on a single battery under standard logging intervals when monitoring within the range of -90°C to +70°C, making it highly suitable for applications where uninterrupted monitoring and long runtime profiles are essential.

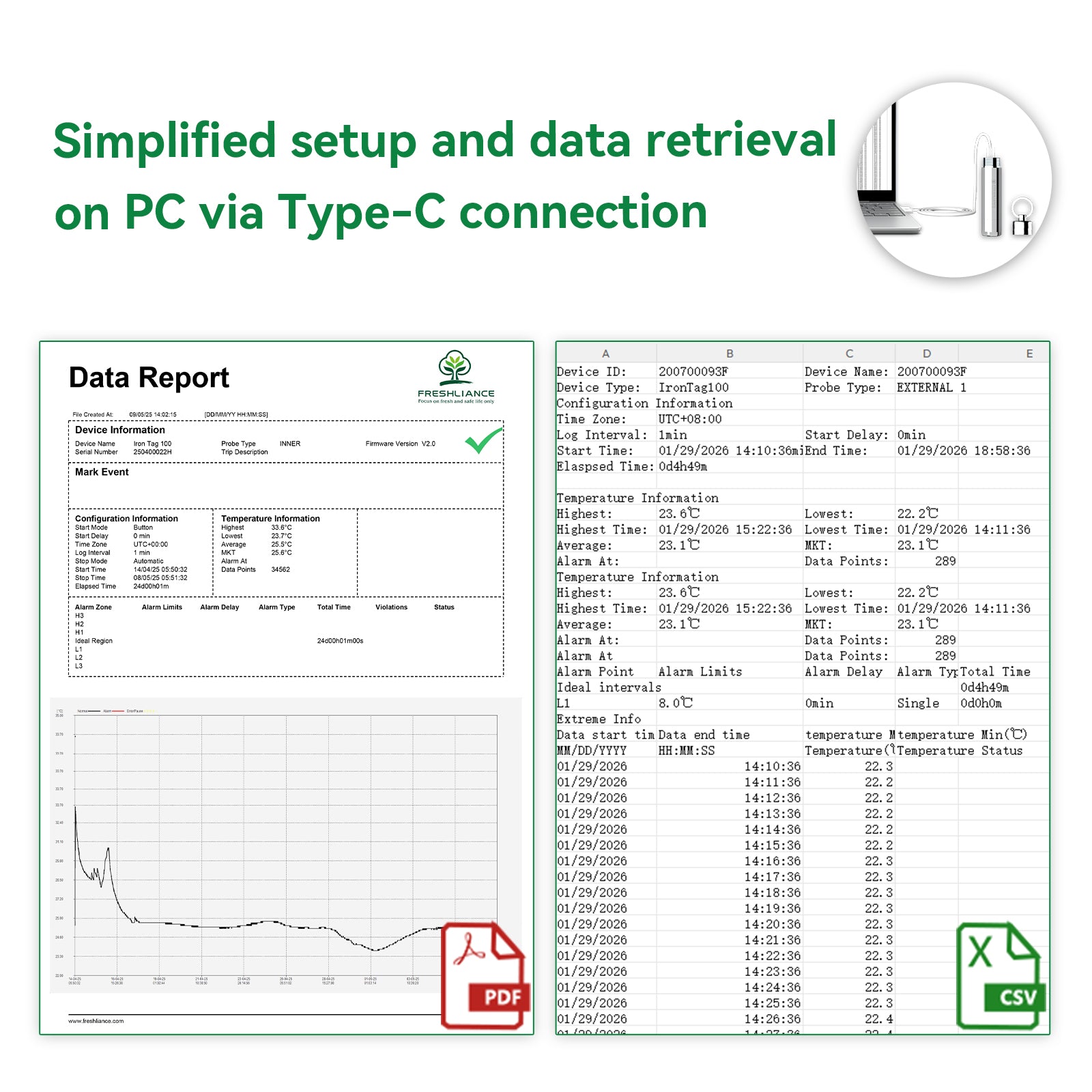

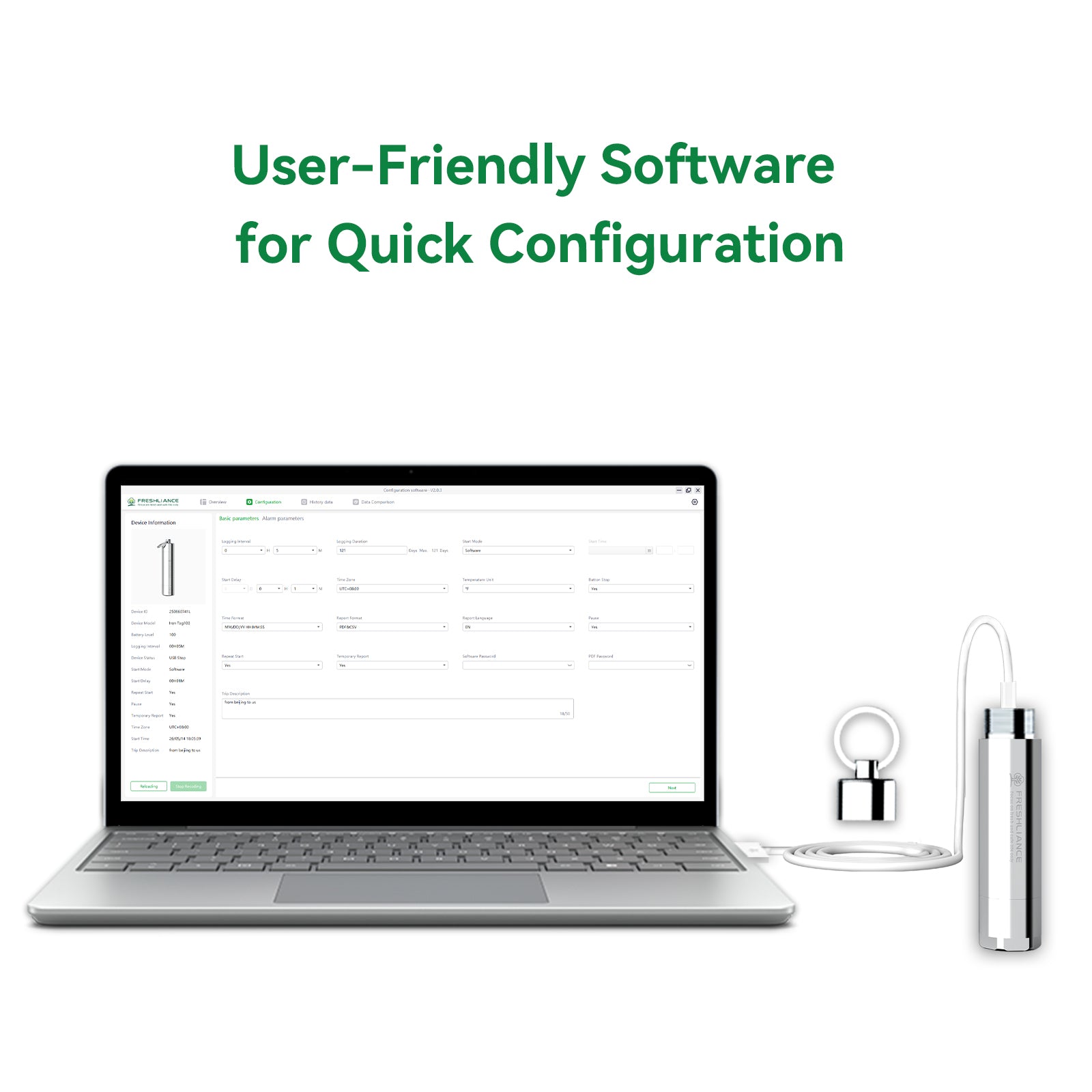

• Simplified setup and automatic data retrieval via Type-C connection
  Provides easy configuration and fast data access via a USB connection. Users can connect the device to a PC via the built-in Type-C port to automatically export comprehensive temperature reports in PDF or CSV formats, eliminating the need for extra cables or proprietary readers during data collection.

• Configurable dual-point alarms with clear LED indicators
  Features two user-configurable alarm thresholds covering high and low limits to fit diverse monitoring needs. If preset thresholds are exceeded, the built-in LED turns red to signal threshold excursion risks during monitoring, and the corresponding excursion data is clearly marked in the final report for quick analysis.
